If you’re wondering how many feet of leaching chamber you need, there is no single number that works for every septic system.
The required length depends mainly on:
- Daily wastewater flow
- Number of bedrooms
- Soil type
- Percolation rate
- Local septic regulations
- Leaching chamber size and design
- System type
- Available drainfield area
As a rough example, a small residential system may require dozens to several hundred linear feet of leaching chamber. However, the final length should be based on an approved septic design and local requirements rather than a general estimate.
Simple Formula
A basic way to estimate required chamber length is:
Required Length = Required Drainfield Area ÷ Effective Width of One Chamber
For example, if a design requires 600 square feet of effective drainfield area and each chamber provides 3 feet of effective width:
600 ÷ 3 = 200 linear feet
So the estimated requirement would be 200 feet of leaching chamber.
Important: This is an example calculation only. Septic systems are site-specific, and local health departments or qualified septic professionals may require different calculations.
What Is a Leaching Chamber?
A leaching chamber is a component of a septic drainfield system that helps distribute treated wastewater into the surrounding soil.

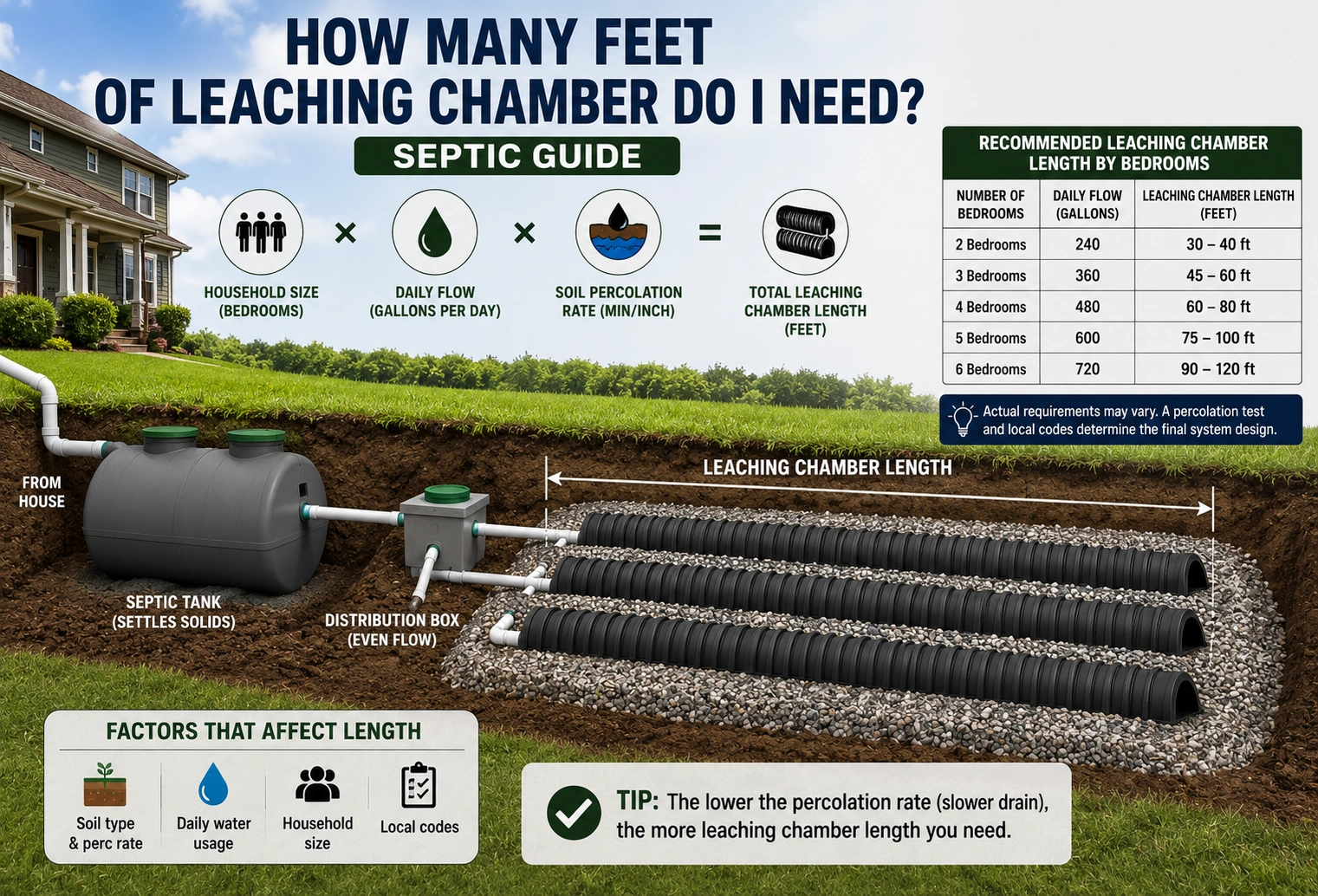

A typical septic system works in several stages:
- Wastewater leaves the house.
- Wastewater enters the septic tank.
- Solids settle inside the tank.
- Liquid effluent moves toward the drainfield.
- The leaching chambers distribute the effluent.
- The surrounding soil absorbs and treats the wastewater.
The chamber provides an open space where wastewater can temporarily collect before moving into the soil.
Unlike a traditional perforated pipe-and-gravel system, a chamber system can provide a large open distribution area without requiring the same amount of aggregate.
How Many Feet of Leaching Chamber Do I Need?
The answer depends on the required drainfield area and the dimensions of the chamber system.
A simple planning equation is:
Linear Feet = Required Drainfield Area ÷ Chamber Width
However, this should not be treated as the final septic design.
For example, imagine a hypothetical system requires 900 square feet of effective drainfield area.
If the chamber system is designed around an effective width of 3 feet:
900 ÷ 3 = 300 feet
That would give an estimated 300 linear feet.
But if the effective width were 4 feet:
900 ÷ 4 = 225 feet
The same required area could therefore need a different number of linear feet.
| Required Drainfield Area | Effective Chamber Width | Approx. Chamber Length |
|---|---|---|
| 300 sq ft | 3 ft | 100 ft |
| 600 sq ft | 3 ft | 200 ft |
| 900 sq ft | 3 ft | 300 ft |
| 600 sq ft | 4 ft | 150 ft |
| 900 sq ft | 4 ft | 225 ft |
| 1,200 sq ft | 4 ft | 300 ft |
These are illustrative calculations, not septic-system requirements.
What Determines the Required Leaching Chamber Length?
Several factors affect how much leaching chamber a property needs.
1. Daily Wastewater Flow
A larger household generally produces more wastewater.
A system serving a larger home or more occupants may therefore require a larger drainfield.
2. Number of Bedrooms
In many residential septic designs, the number of bedrooms is used as a factor when estimating potential wastewater flow.
This means a three-bedroom house and a five-bedroom house may not have the same drainfield requirements even if the homes have similar square footage.
3. Soil Type
Soil is one of the most important factors.
The drainfield needs soil capable of receiving and treating wastewater.
Sand, loam, silt, and clay have different drainage characteristics.
Very slowly draining soil can require a substantially different system design from well-draining soil.
4. Percolation Rate
A percolation test, commonly called a perc test, evaluates how quickly water moves through the soil.
A faster percolation rate generally indicates better drainage, while slower soil may require additional treatment or a larger designed area.
The exact way the test affects chamber length depends on the applicable local rules.
5. Chamber Design
Not every leaching chamber has the same dimensions or approved design capacity.
The manufacturer may provide specifications describing how the chamber should be installed and how its capacity is calculated.
6. Local Regulations
Septic regulations vary between states, counties, municipalities, and other jurisdictions.
The required drainfield size may therefore differ substantially from one location to another.
For an actual installation, local regulations take priority over general online calculations.
How to Calculate Leaching Chamber Length
If you already know the required drainfield area, you can make a basic estimate.
Step 1: Determine Required Drainfield Area
The septic designer or local authority may determine the required area based on the site’s wastewater flow and soil characteristics.
For example:
Required area = 800 square feet
Step 2: Determine Effective Chamber Width
Suppose the approved design uses an effective width of:
4 feet
Step 3: Divide Area by Width
Use:
800 ÷ 4 = 200 feet
The theoretical chamber length would be:
200 linear feet
Step 4: Divide Into Individual Chamber Sections
If each chamber section is 10 feet long:
200 ÷ 10 = 20 sections
You would therefore need approximately 20 sections to reach 200 linear feet.
Again, actual system layouts may include spacing, distribution requirements, reserve areas, slope considerations, and other design factors.
How Many Feet of Leaching Chamber for a 3-Bedroom House?
There is no universal chamber length for a three-bedroom house.
The required size depends on the local wastewater design flow and site conditions.
For example, two three-bedroom houses could require very different drainfields if they are located on different soils.
| Factor | Smaller Requirement Possible | Larger Requirement Possible |
|---|---|---|
| Soil | Well-draining | Poorly draining |
| Perc rate | Favorable | Slow |
| Wastewater flow | Lower | Higher |
| Available area | Large | Limited |
| System design | Standard | Specialized |
Therefore, bedroom count alone is not enough to determine the number of feet of leaching chamber.
How Many Feet of Leaching Chamber for a 4-Bedroom House?
A four-bedroom home may require a larger wastewater treatment area than a smaller home, but the exact chamber length still depends on the approved system design.
A useful way to think about it is:
More design flow → potentially larger treatment area → potentially more chamber length
But this is not a direct bedroom-to-feet conversion.
For example, you should not assume:
4 bedrooms = exactly 200 feet of chamber
That number could be too high or too low depending on the property.
Does Soil Type Affect Chamber Length?
Yes.
Soil is a major factor in drainfield design.
The soil needs to accept wastewater at a suitable rate while providing enough treatment.
Sandy Soil
Sandy soil can allow water to move relatively quickly.
However, extremely rapid movement can also create treatment concerns because wastewater may pass through the soil too quickly.
Loamy Soil
Loam can provide a useful balance of drainage and soil treatment characteristics, depending on its composition.
Clay Soil
Clay generally drains more slowly.
A site with heavy clay may require a different drainfield design or additional treatment depending on local requirements.
The soil profile should therefore be evaluated professionally rather than judged only by how the soil looks.
Why a Perc Test Matters
A perc test is important because septic wastewater must be absorbed by the soil.
The test helps determine how quickly water moves through the soil.
A property with favorable soil conditions may support a different drainfield design from a property with slow or restrictive soils.
The result can affect:
- Drainfield area
- Chamber configuration
- Trench dimensions
- Number of trenches
- Total chamber length
- Whether an alternative system is needed
Because septic regulations differ by jurisdiction, the test procedure and design criteria also vary.
Leaching Chamber Length vs. Drainfield Area
These terms should not be confused.
Drainfield area is generally expressed in square feet.
Leaching chamber length is expressed in linear feet.
For example:
500 square feet of drainfield area
is not automatically:
500 feet of chamber
You need to know how the approved chamber system converts linear length into effective treatment or absorption area.
If a system has an effective width of 3 feet:
500 ÷ 3 = 166.7 feet
That would be approximately 167 linear feet in a simple area calculation.
How Many Chambers Do You Need?
Once you know the required total length, you can estimate the number of chamber sections.
The formula is:
Number of Chambers = Total Required Length ÷ Length of Each Chamber
For example, suppose the design requires 240 linear feet and each chamber section is 12 feet long:
240 ÷ 12 = 20
So the layout would require approximately 20 chamber sections.
If the calculation produces a fraction, you generally round up.
For example:
245 ÷ 12 = 20.42
That means at least 21 sections would be needed to reach 245 feet of total physical chamber length.
The actual approved design may differ because chamber spacing and layout requirements also matter.
How Much Does a Leaching Chamber System Cost?
The cost can vary widely because installation involves much more than purchasing the chambers.
Potential costs include:
- Chambers
- Excavation
- Septic tank
- Distribution components
- Engineering
- Soil testing
- Permits
- Installation labor
- Site preparation
- Pumps, if required
- Inspection
For that reason, comparing only the price per foot of chamber can be misleading.
Example Cost Comparison
Suppose two hypothetical products have these prices:
| Product | Example Price | Chamber Length | Example Cost per Foot |
|---|---|---|---|
| System A | $1,500 | 200 ft | $7.50/ft |
| System B | $1,800 | 300 ft | $6.00/ft |
| System C | $2,400 | 400 ft | $6.00/ft |
These are example numbers only, not current market prices.
The cheaper product per foot is not automatically the better choice. You also need to consider its approved capacity, installation requirements, durability, and compatibility with the septic design.
Do You Need More Chamber Length Than Pipe?
Not necessarily.
A chamber system and a conventional pipe-and-gravel system are different designs.
Their sizing cannot always be compared simply by saying:
100 feet of pipe = 100 feet of chamber
The effective treatment area and design calculations can differ.
The septic designer should determine which system meets the site’s requirements.
Common Mistakes When Estimating Leaching Chamber Length
Mistake 1: Using House Square Footage Alone
The size of the house does not directly tell you how many feet of chamber you need.
Mistake 2: Using Bedroom Count as the Only Factor
Bedrooms may be used to estimate design flow, but soil and local requirements also matter.
Mistake 3: Ignoring the Perc Test
Soil conditions can significantly affect the drainfield design.
Mistake 4: Assuming Every Chamber Is the Same
Different products have different dimensions and approved applications.
Mistake 5: Confusing Linear Feet With Square Feet
Linear feet measure chamber length.
Square feet measure area.
They are not interchangeable without knowing the effective width.
Mistake 6: Planning Without Checking Local Regulations
A calculation that works in one jurisdiction may not meet requirements somewhere else.
A Simple Example
Suppose an approved septic design requires:
720 square feet of drainfield area
And the selected chamber system has an effective width of:
4 feet
Calculate:
720 ÷ 4 = 180 feet
So the basic mathematical estimate is:
180 linear feet of chamber
If the chamber sections are 10 feet long:
180 ÷ 10 = 18 sections
Therefore, the theoretical layout would use:
18 × 10-foot sections
This example demonstrates the calculation method. The actual approved system may require different dimensions or additional components.
When Should You Hire a Septic Professional?
For a real septic installation or replacement, professional design is strongly recommended and may be legally required.
You should obtain professional help when:
- Installing a new septic system
- Replacing a failed drainfield
- Adding bedrooms
- Building a new home
- Changing the property’s use
- Working with difficult soil
- Installing an alternative septic system
- Applying for a septic permit
A qualified septic designer can evaluate the soil, wastewater flow, property layout, setbacks, and local requirements.
FAQs
1. How many feet of leaching chamber do I need?
There is no universal number. The required length depends on wastewater flow, soil conditions, percolation results, chamber dimensions, and local septic regulations. A professional septic design should determine the final length.
2. How do you calculate leaching chamber length?
A basic estimate can be made by dividing the required drainfield area by the effective width of the chamber:
Length = Required Area ÷ Effective Width
The actual septic design may require additional calculations.
3. How many feet of leaching chamber does a 3-bedroom house need?
Bedroom count alone cannot determine the required chamber length. The design also depends on soil, wastewater flow, local regulations, and the specific chamber system.
4. Does a perc test determine how much leaching chamber I need?
The percolation test provides important information about how quickly water moves through the soil. Its result can influence drainfield sizing, but the exact relationship depends on local regulations and the approved septic design.
5. Can I calculate my septic chamber length myself?
You can make a preliminary estimate, but the final design should be completed or approved by a qualified septic professional and the applicable local authority. Septic systems involve public health and environmental considerations.
Conclusion
So, how many feet of leaching chamber do I need? There is no one-size-fits-all answer. The required length depends on wastewater flow, soil conditions, percolation rate, chamber specifications, site layout, and local septic regulations.
For a basic mathematical estimate, use:
Required Chamber Length = Required Drainfield Area ÷ Effective Chamber Width
For example, 600 square feet of required area with a 3-foot effective width would produce:
600 ÷ 3 = 200 linear feet
But this should be treated only as an example—not as a final septic design.
For an actual installation, have the property evaluated and use the requirements established by your local septic authority and a qualified septic professional.
Discover More Articles
How Many Tons for 1,600 Square Feet? AC Size Guide
